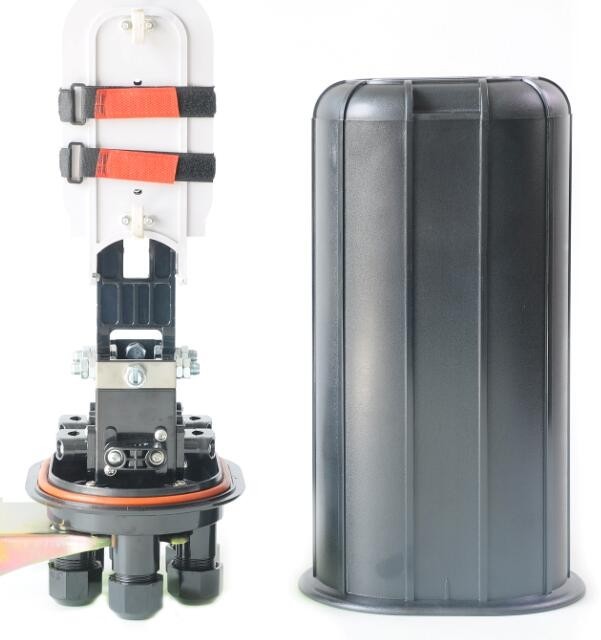

Dimension and capacity
|
Outside dimension (Height x Diameter) |
455mm×220mm |
|
Weight (excluding outside box) |
3300g—4200g |
|
Number of inlet/outlet ports |
6 pieces |
|
Diameter of fiber cable |
Φ8mm～Φ21 mm |
|
Capacity of FOSC |
Bunchy: 12-240 (cores), Ribbon: up to 576 (cores) |
Main Components
|
No. |
Name of components |
Quantity |
Usage |
Remarks |
|
1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole |
Height x Diameter 350mm x 220mm |
|
2 |
Fiber optic splice tray (FOST) |
Max. 10 trays ( bunchy) Max. 8trays (ribbon ) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy: 12, 24 (cores) Ribbon: 6 (pieces) |
|
3 |
Base |
1set |
Fixing internal and external structure |
|
|
4 |
Plastic hoop |
1 set |
Fixing between FOSC cover and base |
|
|
5 |
Gasket ring |
1 set |
Big gasket ring is used to seal FOSC cover and base. Small gasket ring is used to seal inlet/outlet tube |
1 piece of big gasket ring, 6 pieces of small gasket ring |
|
6 |
Pressure testing valve |
1 set |
After inject air, it is used for pressure testing and sealing testing |
Configuration as per requirement |
|
7 |
Earthing deriving device |
1 set |
Deriving metallic parts of fiber cables in FOSC for earthing connection |
Configuration as per requirement |
Main Accessories
|
No. |
Name of accessories |
Quantity |
Usage |
Remarks |
|
1 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
|
2 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
|
3 |
Earthing wire |
1 piece |
Putting through between earthing devices |
|
|
4 |
Abrasive cloth |
1 piece |
Scratching fiber cables |
|
|
5 |
Labeling paper |
1 piece |
Labeling fibers |
|
|
6 |
Special wrench |
2 pieces |
Installing and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube |
|
|
7 |
Measuring paper |
1 piece |
To measure perimeter, of which its diameter is enlarged with seal tape |
|
|
8 |
Seal tape |
1 ring |
Enlarging diameter of fiber cable which fits in with gasket ring. |
Configuration as per specification |
|
9 |
Insulation tape |
1 ring |
Enlarging diameter of fiber cable for easy fixing |
|
|
10 |
Metal hoop |
1 set |
For wall mounting and pole hugging |
|
|
11 |
Buffer tube
|
decided by customers |
Hitched to fibers and fixed with FOST, managing buffer. |
Configuration as per requirement |
|
12 |
Desiccant |
1 bag |
Put into FOSC before sealing for desiccating air. |
