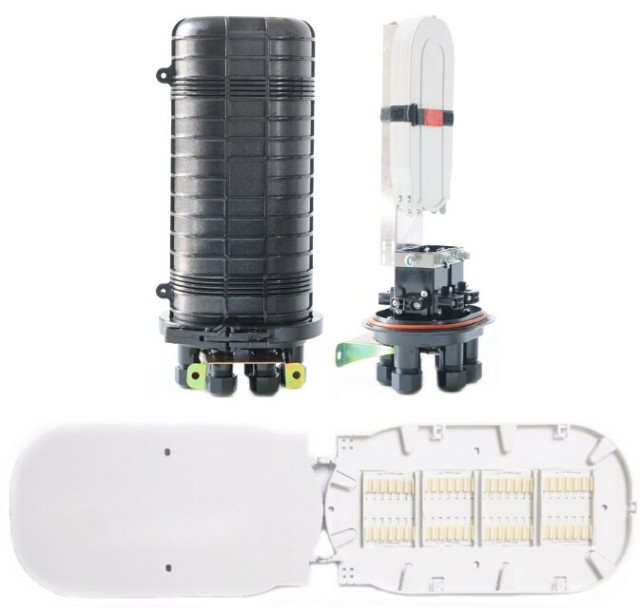

FOSCMG6 Dome Type Mechanical Sealing Fiber Optic Splice Closure (FOSC)

Model

FOSCMG6

Type

Dome type

Sealing Structure

Mechanical

Number of Inlet/Outlet ports

6 ports

Cable Diameter

6 ports×16mm

Maximum Capacity

Bunchy: 288 fibers;

Ribbon:432 fibers

Capacity per Splice Tray

Buncy: single layer: 24 fibers; dual layers: 48 fibers;

Ribbon: standard: 6pcs

Quantity of Splice Tray

6pcs

Body Material

PC

Sealing Material

Thermoplastic rubber

Assembling method

Aerial, direct buried, pipelined, wall mounting, manhole

Dimension

480(H)×220(D)mm

Net Weight

3.5~4.1KG

Temperature

-40℃~65℃

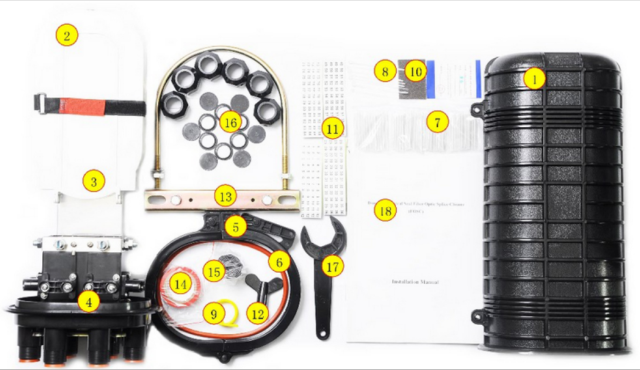

Item

Name

Usage

Quantity

1

Housing (Cover)

To protect splices of fiber optic cables

1pc

2

Splice Tray

To fix Fiber Splice Protective Sleeves

Max. 6pcs

3

Fiber Holding Tray

To store loose tube fibers

1pc

4

Housing (Base)

To fix internal and external structure

1pc

5

Plastic Hoop

To fix Housing Cover and Base

1pc

6

Sealing Grommet

To seal Cover and Base

1 set

Item

Name

Usage

Quantity

7

Fiber Splice Protective Sleeves

To protect fiber splices

Same as capacity

8

Nylon Tie

To fix buffer tubes with fibers inside

8pcs

9

Grounding Wire

To connect with grounding device

1pc

10

Abrasive Cloth

To polish fiber optic cable

1pc

11

Labelling Paper

To label fibers

1 set

12

M10 Wrench

To screw nuts for strength member

1pc

13

Hanging Hoop

To install on wall and pole

1 set

14

Insulation Tape

To enlarge cable diameter for fixation

1 roll

15

Sealing Tape

To enlarge cable diameter for sealing grommet

1 roll

16

Sealing Rings for Ports

To seal cable ports

6pcs

17

Wrench

To tighten nuts of cable ports

1pc

18

User Manual

To instruct installation

1pc

Item

Name

Usage

Quantity

1

Valve

To perform pressure and sealing testing

1pc

2

Grounding Device

To derive metallic components of fiber cable

1 set

3

Buffer Tube

To protect fibers and be fixed on splice trays

specified

4

Desiccant

To desiccate air in FOSC after sealing

1 bag
