Description:

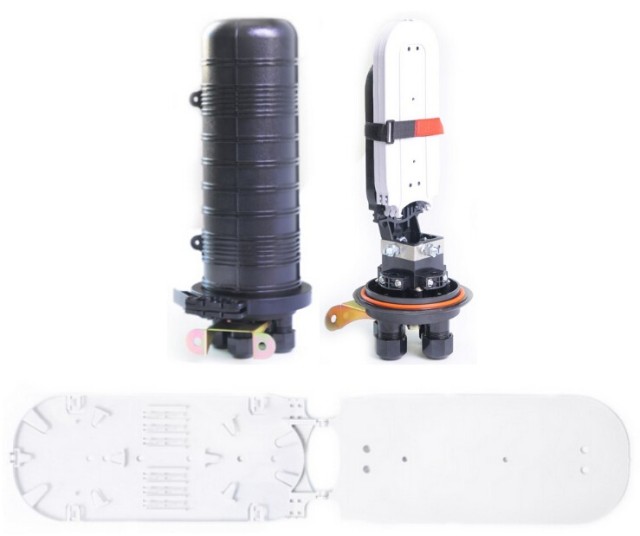

FOSCMA4 Dome Type Mechanical Sealing Fiber Optic Splice Closure (FOSC) is mechanical sealing.
Specification:
|
Model |
FOSCMA4 |
|
Type |
Dome type |
|
Sealing Structure |
Mechanical |
|
Number of Inlet/Outlet ports |
4 ports |
|
Cable Diameter |
4 ports×17mm |
|
Maximum Capacity |
Bunchy: 96 fibers; Ribbon: 288 fibers |
|
Capacity per Splice Tray |
Bunchy: single layer:12 fibers; dual layers: 24 fibers; Ribbon: 6pcs |
|
Quantity of Splice Tray |
4pcs |
|
Body Material |
PC |
|
Sealing Material |
Thermoplastic rubber |
|
Assembling method |
Aerial, direct buried, pipelined, wall mounting, manhole |
|
Dimension |
430(H)×190(D)mm |
|
Net Weight |
2.5~3.1KG |
|
Temperature |
-40℃~65℃ |
Main Components:
|
Item |
Name |
Usage |
Quantity |
|
1 |
Housing (Cover) |
To protect splices of fiber optic cables |
1pc |
|
2 |
Splice Tray |
To fix Fiber Splice Protective Sleeves |
Max. 4pcs |
|
3 |
Fiber Holding Tray |
To store loose tube fibers |
1pc |
|
4 |
Housing (Base) |
To fix internal and external structure |
1pc |
|
5 |
Plastic Hoop |
To fix Housing Cover and Base |
1pc |
|
6 |
Sealing Grommet |
To seal Cover and Base |
1 set |
|
7 |
Sealing Rings for Ports |
To seal cable ports |
4pcs |
Standard Accessories:
|
Item |
Name |
Usage |
Quantity |
|
8 |
Fiber Splice Protective Sleeves |
To protect fiber splices |
Same as capacity |
|
9 |
Nylon Tie |
To fix buffer tubes with fibers inside |
8pcs |
|
10 |
Grounding Wire |
To connect with grounding device |
1pc |
|
11 |
Abrasive Cloth |
To polish fiber optic cable |
1pc |
|
12 |
Labelling Paper |
To label fibers |
1 set |
|
13 |
Wrench |
To tighten nuts of cable ports |
1pc |
|
14 |
M10 Wrench |
To screw nuts for strength member |
1pc |
|
15 |
Measuring Paper |
To measure perimeter of fiber cable |
1pc |
|
16 |
Sealing Tape |
To enlarge cable diameter for sealing grommet |
1 roll |
|
17 |
Insulation Tape |
To enlarge cable diameter for fixation |
1 roll |
|
18 |
Hanging Hoop |
To install on wall and pole |
1 set |
|
19 |
User Manual |
To instruct installation |
1pc |
Optional Accessories:
|
Item |
Name |
Usage |
Quantity |
|
1 |
Valve |
To perform pressure and sealing testing |
1pc |
|
2 |
Grounding Device |
To derive metallic components of fiber cable |
1 set |
|
3 |
Buffer Tube |
To protect fibers and be fixed on splice trays |
specified |
|
4 |
Desiccant |
To desiccate air in FOSC after sealing |
1 bag |
